Recently, the main pre-assembly phase of the special-shaped truss space structure project, meticulously constructed by our company, has been successfully completed. This milestone not only signifies the precise formation of the project's core skeleton but also represents another significant breakthrough in our endeavors within the challenging realm of complex three-dimensional curved surface engineering. With its unique artistic form and demanding technical specifications, this project has transitioned from blueprint to reality. Its emergence is not merely the birth of a structure; it stands as a three-dimensional manifesto of precision and innovation in modern steel structure engineering.
The Pinnacle of Design: The Symphony of Art and Mechanics in 3D Curved Surfaces
As an exceptionally challenging complex three-dimensional curved surface project, its technical requirements set an industry benchmark. The project occupies a total area of over 2,200 square meters, creating a magnificent space imbued with a futuristic aesthetic. The top elevation is precisely positioned at 8.9 meters, ensuring both bright, open interiors and an elegant skyline profile. The eave structural height is carefully designed at 4 meters, achieving an optimal balance between visual proportion and functionality. Approximately 200 tons of high-quality steel are incorporated into the entire structure, each ton embodying the pursuit of ultimate strength, toughness, and lightweight design.
The soul of the project undoubtedly lies in its core design highlight: a massive ring-shaped skylight with a diameter of 14 meters. This is not a static dome; rather, through a meticulously calculated spiral radial layout, it unfolds dynamically outwards like an elegantly blooming flower of light. Its maximum expansion radius reaches an impressive 28 meters, creating a sense of infinite spatial extension within a limited height. Light pours through this intricate structure, painting an ever-changing tapestry of light and shadow on the interior floor as time and seasons progress. This design transcends basic lighting functionality, elevating the architecture into a vessel for light and shadow art, offering users an immersive sensory experience.
Innovation in Craft: Differentiated Shaping Techniques Conquer Irregular Geometry
Confronted with such complex three-dimensional curved surfaces and irregular structures, traditional construction methods proved inadequate. The project team pioneered an innovative approach, adopting differentiated high-precision construction techniques for the inner and outer ring structures, employing a strategy of "tailored techniques for specific forms" to overcome the challenge of irregular geometry.
Rectangular Hollow Section (RHS) Bending Technology: The Magic of Curving the Straight: The main structures of both the inner and outer rings innovatively utilize advanced RHS bending technology. This requires transforming straight rectangular steel tubes into precise three-dimensional shapes conforming to strict mathematical models using high-precision cold or hot bending equipment. Each curved section is a fusion of force and beauty, and a cornerstone of structural stability.

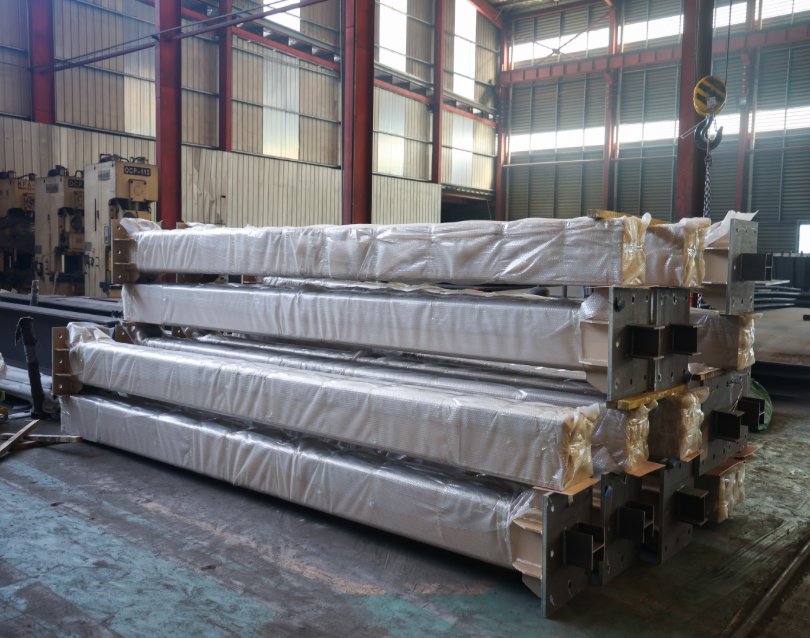

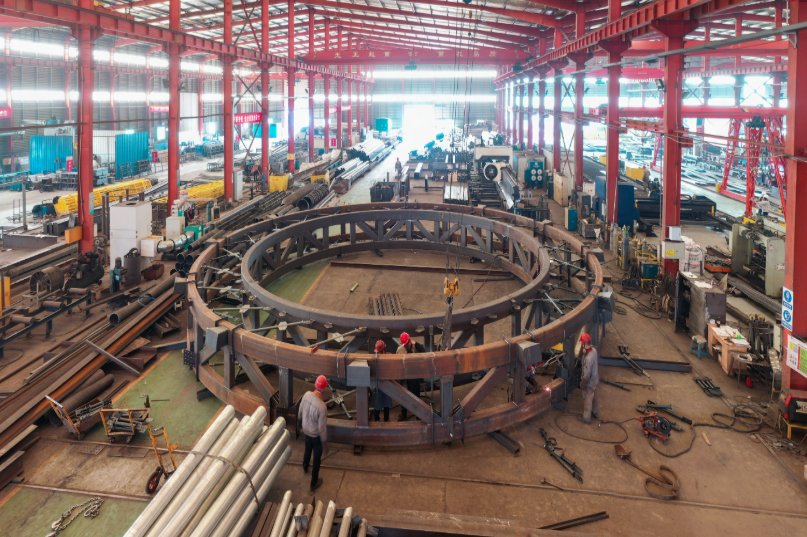

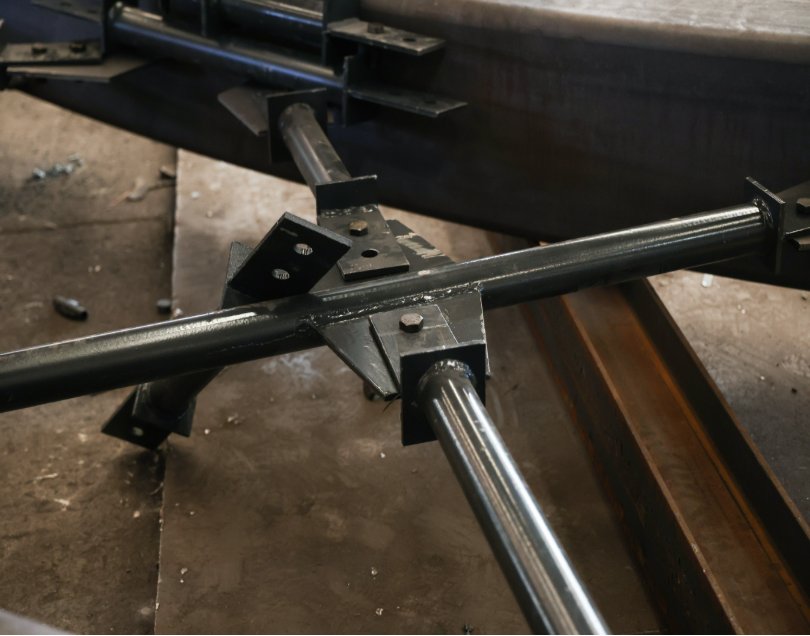

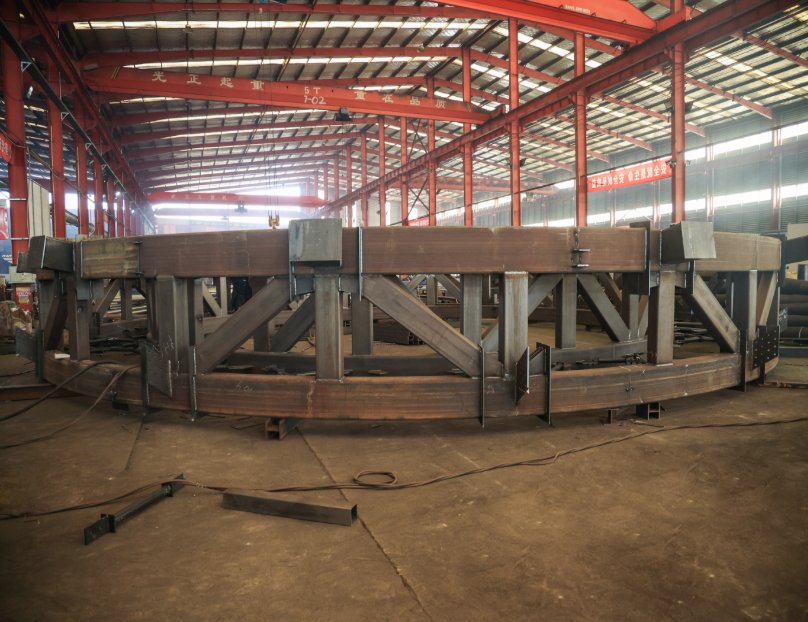

Outer Ring: Eight Segments, One Perfect Circle, Seamless Integration: Particularly noteworthy is the realization of the outer ring structure. To achieve the large-scale circular effect, the engineering team strategically divided it into 8 large custom curved steel beams. Each segment underwent cutting, bending, and pre-assembly inspection in a factory environment using CNC machinery with millimeter-level precision. The on-site assembly resembled a precise "space docking" operation. Utilizing high-strength bolts and precision welding techniques, these 8 "curved puzzle pieces" were seamlessly joined into a perfect circle. The exceptional splicing accuracy and smooth interfaces ensured both the structural continuity and visual integrity of the whole.

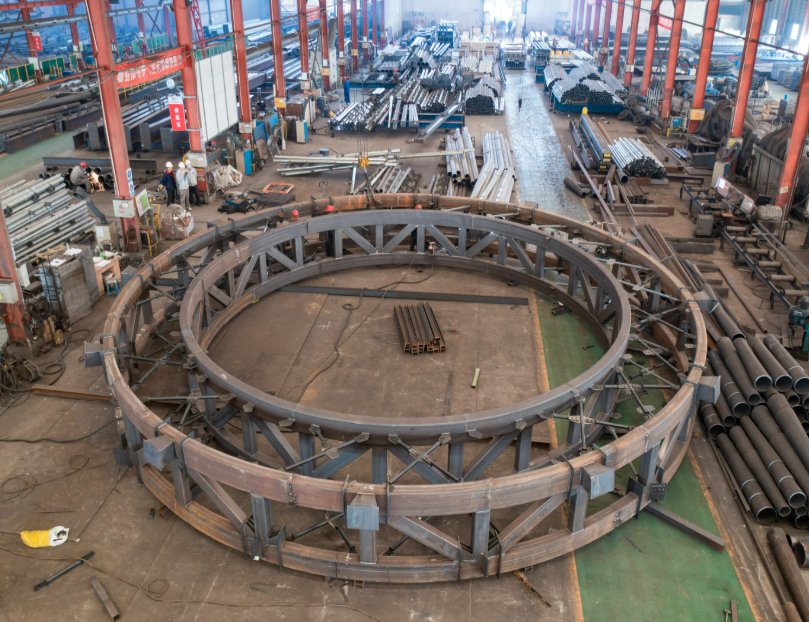

Center Ring: Hot Bending Shaping, Naturally Achieved Curvature: For the centrally located ring-shaped skylight structure, characterized by more intricate and subtle curvature variations, the project creatively employed hot bending forming technology. By precisely controlling heating temperatures, specific steel sections were brought into a plastic state and shaped using precision molds. This process achieves complex small-radius, multi-dimensional curved surfaces unattainable through traditional cold bending, guaranteeing the highly fluid form and geometric accuracy of the center ring structure – a crucial step in realizing the design vision.
The Cutting Edge Challenge: The Battle for Precision and Coordination, Measured in Millimeters
The demands placed on component machining accuracy and on-site assembly coordination for such irregular space structures are exceptionally stringent, akin to a "battle waged over millimeters."
Machining Precision: Millimeter-Level Control Empowered by Digitalization: Every step in fabricating three-dimensional irregular components – from cutting and bending to hole drilling – relies on the deep integration of high-precision CNC equipment and BIM models. Any minor dimensional or shape deviation can be dramatically amplified during the layered, spatially complex assembly process, leading to irreparable misalignment and installation failure. The project team implemented full-process digital management, achieving millimeter-level precision control over thousands of irregular components, from detailed design to factory manufacturing.
On-Site Assembly: The Conductor's Art in a Spatial Symphony: On-site assembly presented a multi-faceted test of project management and technical skill. The spatial positioning of irregular components is extraordinarily complex, requiring precise coordination of lifting sequences, temporary support setup, and measurement calibration – akin to conducting a symphony. The project utilized advanced total stations and 3D laser scanning technology for real-time positioning and deviation monitoring, combined with BIM models for visual simulation and guidance. This ensured the precise "placement" of hundreds of tons of irregular steel structure across the expansive site, achieving the perfect manifestation of the design form. The first-time success of the main pre-assembly stands as a powerful testament to meeting these ultra-high coordination requirements.
Laying the Foundation Stone: Ushering in a New Era of High-End Customization
The successful implementation of this special-shaped truss space structure project holds significance far beyond the structure itself. It is a concentrated demonstration of our company's technical prowess and project management capabilities in the field of complex spatial structures, serving as a paradigm of the perfect fusion of artistic imagination and engineering practice. More importantly, it has laid an exceptionally solid and valuable foundation for undertaking similar high-end, customized projects in the future:
Technical Accumulation: Systematic core technologies and patented process packages have been accumulated in areas such as complex 3D modeling, high-precision machining of irregular components (especially RHS bending and hot bending), and large-scale spatial precision measurement and positioning installation.
Experience Database: A valuable repository of experience and solutions for tackling design and construction challenges inherent to complex curved surface structures has been established, providing efficient references for future projects.
Team Forging: A specialized team proficient in irregular steel structures, possessing innovative thinking and complex problem-solving capabilities, has been rigorously trained.
Brand Elevation: The project significantly enhances the company's core competitiveness and brand reputation in the high-end, landmark construction market, forging a golden reputation for expanding into broader markets.
The completion of this project not only erects an architectural landmark integrating the interplay of light and shadow but also raises a technological monument symbolizing the relentless ascent of China's steel structure engineering towards ever greater precision, complexity, and artistry. It proves that, through meticulous calculation and innovative craftsmanship, even the most challenging curved dreams can be forged into a solid and brilliant reality. Every precise interlocking of steel members is a resolute step forward into the boundless possibilities of future space.
